Assigning resources in MS Project Pro

<< Back

Contents:

  1. Assigning resousces in table in MS Project
  2. Assigning resources in window "Task Information" in MS Project
  3. Assigning resources in window "Assign Resources" in MS Project
  4. Assigning resources in window "Task details form" in MS Project
  5. Chat


Assigning resources in table in MS Project

First tool assigning resources in table in MS Project:

  1. Open "Gantt Chart" in your plan.
  2. Add the column "Resource Names".
  3. Choose the resource in the colums "Resource Names".

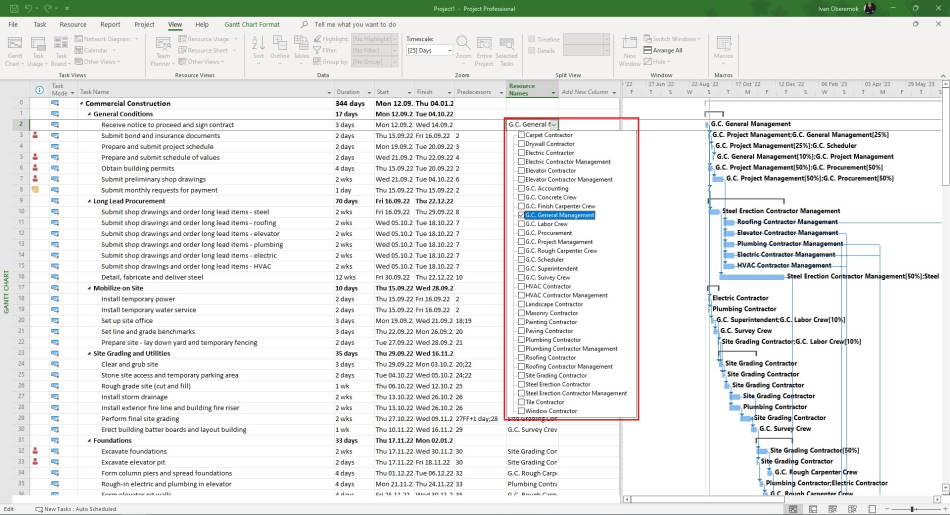

Assigning resources in table in MS Project


Assigning resources in window "Task Information" in MS Project

Second tool assigning resources in table in MS Project:

  1. Click the task twice the mouse.
  2. Choose the tub "Resources" in the window "Task Information"
  3. Choose the resources in the field "Resource Name".
  4. Set the units for each resources in the field "Units".
  5. Click the button "Ok"

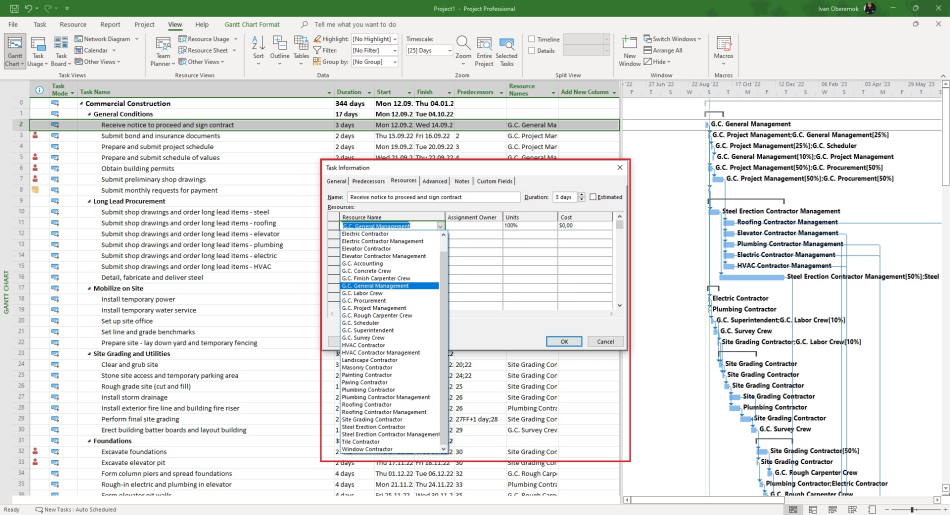

Assigning resources in window "Task Information" in MS Project


Assigning resources in window "Assign Resources" in MS Project

Third resource assignment tool in a table in MS Project:

  1. Click the item "Resource" in the top menu.
  2. Click the item "Assign Resources" in block "Assignments".
  3. Choose resources in the window "Assign Resources".
  4. Select the resource and click the button "Assign".
  5. Enter units for each assigning resources in the field 'Units".

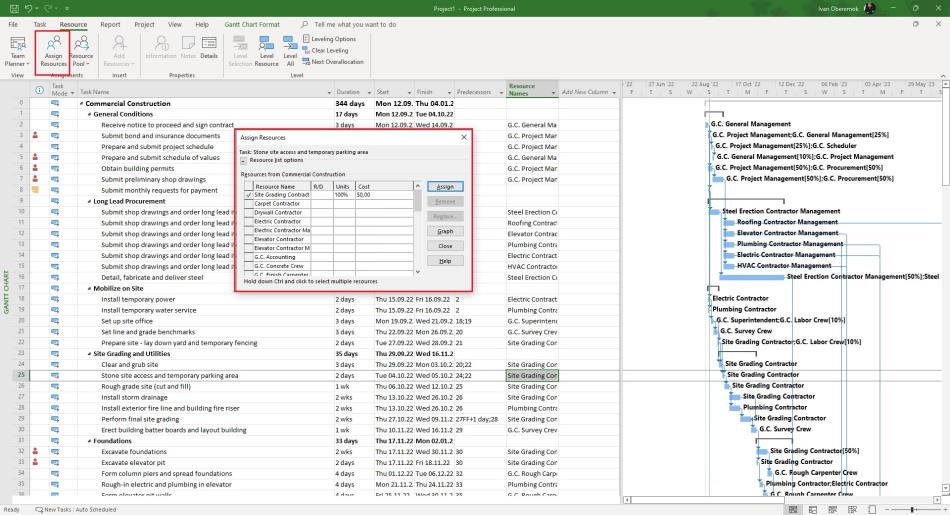

Assigning resources in window "Assign Resources" in MS Project


Assigning resources in window "Task details form" in MS Project

Fourth resource assignment tool in a table in MS Project:

  1. Click the item "Task" in the top menu.
  2. Click the item "Details" in block "Properties".
  3. Click the item "Task Form Format" in top menu for window "Task details from".
  4. Click the item "Work" in block "Details"
  5. Choose resources in the window "Task details from" in the field "Resource Name".
  6. Enter units for each assigning resources in the field 'Units".
  7. Click the button "OK".

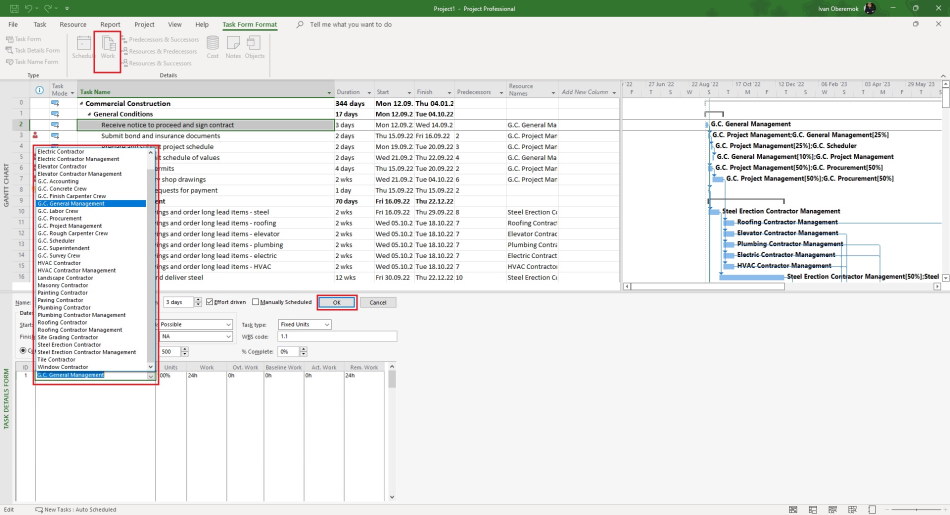

Assigning resources in window "Task details form" in MS Project


#msprojectpro, #projectmanagment, #projectresourcemanagement, #planningprocess, #oberemokii

Assigning resources in MS Project Pro

2023-09-14 18:06:49

Ivan Oberemok
